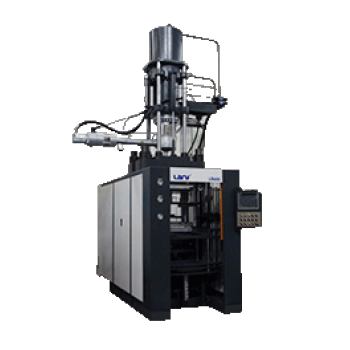

China high quality hot sale vertical injection moulding machine

China high quality hot sale vertical injection moulding machine

China high quality hot sale vertical injection moulding machine
CategoriesRubber injection machine
AlbumView larger image
Brandprofessinal for rubber shoe sole injection machine
ModelLR400-4000cc
Namevertical injection moulding machine
ColorSame as picture
Model numberLR400-4000cc
Voltage380V or customized
WarrantyOne year
CertificationCE
LogoLary
Clamping force4000KN
Opening stroke500mm
Max. distance between heating platens:500-600mm
FOB portNingbo
Terms of PaymentT/T
Update Time2018-11-14
Detail Information

Lary CE approved high quality high efficiency rubber injection machine

rubber injection machine

Model Number: LR400-4000cc

1.CE

2.Easy to operate

3.With safety protection device

4.Suitable for rubber in different viscosity and hardness

5.Screw counter revolution for material changing and

No.

Item

Unit

Specification

1

Injection volume

cc

4000

2

Injection pressure

MPa

196

3

Max. feeding rubber strip width

mm

60

4

Max. feeding rubber strip thickness

mm

8

5

Clamping force

KN

4000

6

Opening stroke

mm

500

7

Max. distance between heating platens

mm

500-600

8

Min. mold thickness

mm

100

9

Heating platen Dim.

mm

700×700

10

Max. temperature for heating platen

oC

250

11

Max. temperature for barrel

oC

80

12

Oil pump and motor power

KW

30

13

Total power

KW

70

14

Oil tank capacity

Liter

550

15

Machine dimensions(L×W×H)

mm

3700×2800×4830

16

Machine weight

Tons

12.5
